90-75 Band Slicer & 77-2 Paddle Bagger

The Model 90-75 Band Slicer, Model 77-2 Paddle Bagger combines years of step-by-step improvements into a servo driven reciprocating bagger with fewer moving parts and increasing reliability at high speed.

UBE builds the Model 90-75 Band Slicer, Model 77-2 Paddle Bagger for each customer’s particular needs. Over 1000 installations required numerous customer driven innovations. Your machine may vary from this typical unit illustrated. UBE wants to meet with you and design your new line.

Our automated bread slicing and bagging solution is designed with a compact footprint in mind, reducing space needs without compromising quality. Its top-tier components are suitable for various loaf and bag sizes, ensuring continuous high-speed production.

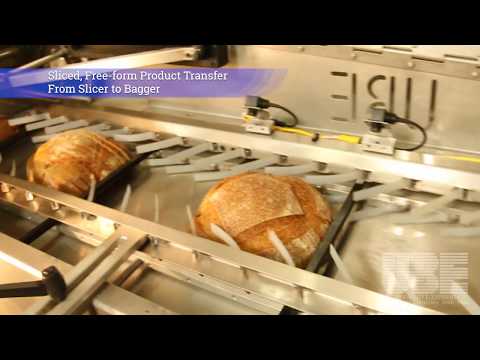

Our Combo Bread Slicer and Bagger system provide unparalleled flexibility and reliability for slicing and bagging a wide range of bread types, from standard loaves to fruit-filled varieties. The pendulum scoop drive and patented flusher discharge conveyor ensure the smoothest loaf bagging transfer possible. Plus, the single swivel operator control panel simplifies the monitoring of slicing and bagging processes.

FEATURES & SPECIFICATIONS

  • Maximum Product Length: 16”L x 6”H x 10”W; [432mm x 152mm x 254mm]
  • Slicing and Bagging Speed up to 55 Loaves Per Minute
  • Adjusting Unit Range/Standard: 3/8” to 5/8”; [9.5mm to 15.9mm]
  • Slice thickness adjusting mechanism easily removed for wash-down cleaning (slicer)
  • Blade speed: 1020 ft/min [25.9m/min]
  • Category 3 Guarding with Coded Magnetic Door Switches
  • Easy Blade Removal and Replacement
  • Manual Duel Bag Magazine
  • Optional Crumb Blower Improves Loaf Packaging Quality
  • Wider Versions for Longer Products Available
  • Optional Automatic Duel Bag Magazine
  • Optional CE Approval, Guards and Coded Magnetic Door Switches
  • Optional Stainless Steel Electrical Enclosure IP66-(Nema 4) Rated
  • Minimum Product Width: 6”L x 2”H x 3”W; [152mm x 51mm x76mm]
  • Available in Metric Construction
  • Slice thickness range 3/8” to 5/8” [9.5 to 15.9mm] standard
  • Different Slice Thickness Available Upon Request
  • Electrical Options: 230/380/460 Volt, 50/60 Hz, 3 Ph, 5 HP
  • Automatic Broken Blade Shut Off
  • Blade Guides are Offset to Eliminate Build Up (slicer)
  • Optional Crumb Blower Improves Loaf Packaging Quality
  • Stainless Steel Frame Features Paint Free Construction and Easy Access Guarding
  • Optional AS 4024.1 Australia Specification
  • Optional Bag Closing Machine Available
  • Optional CSA Approval
  • Optional UL Approval

TECHNICAL INFO

Specifications vary by product and application. Please contact our sales office about product varieties and speeds.

Electrical

208/230/380/415/460 V - 3 Phase, 50/60 Hz

Air Requirements

6 CFM, 90 PSI - Dry filtered

Minimum Product Width

3”

Maximum Product Length

16”

Blade size

176” or 188” x .016” x 5/16”-7/16” (l-w-h) [4.47m or 4.79m x 0.406mm x 7.938mm - 11.113mm] (l-w-h)



CE Approval, guards and coded magnetic door switches

Stainless steel electrical enclosure IP66-(Nema 4) rated

UL Approval

CSA Approval

Wider versions for longer products available

Automatic duel bag magazine

Optional bag closing machine available

Available in metric construction (where possible)

AS 4024.1 Australia Specification

Different slice thickness available upon request
