2400-100 Reciprocating Slicer

The Model 2400-100 uses a durable crack case and knife frame. For low maintenance performance the 2400-100 features the efficient continuous flow loaf feed. As a result, the 2400-100 has greater speed and a better slice.

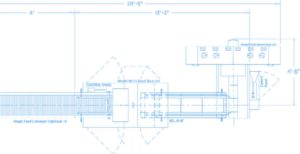

UBE builds the Model 2400-100 Slicer for each customer’s particular needs. Over 1000 installations required numerous customer driven innovations. Your machine may vary from this typical unit illustrated. UBE wants to meet with you and design your new line.


  • Stainless steel frame features paint free construction and easy access guarding
  • Three inch [76.2mm] stroke crankcase
  • Double loaf eliminator on outfeed flight conveyor
  • Painted electrical enclosure IP65 (Nema 12) rated
  • Slicing Speed Up to 55 loaves per minute
  • Continuous flow loaf feed reduces loaf penetration rate
  • Simple infeed adjustment for up to 16” [400mm] loaf length
  • Connects to all baggers and wrappers - BISSC approved
  • Category 3 guarding with coded magnetic door switches
  • Slice Thickness to customer specifications


Specifications vary by product and application. Please contact our sales office about product varieties and speeds.
  • Electrical - 208/230/380/460 V - 3 Phase, 50/60 Hz, 3 HP [2.5 kva]
  • Minimum Product Width - 3”
  • Maximum Product Length - 16”
  • Blade Size - 7/16” pin slot / 430ft./min. [290mm pin slot/ 131m/min.]
Machine Options:
  • Knife frame from 1/4” to 2” [6.3mm to 50.8mm] slice thickness
  • Loaf splitter and turner - heel removers
  • Blade oiling system - loaf boosters
  • 20” [508mm] loaf length capacity and odd size loaf capacity
  • Loaf counter - dual controls and other special requirements
  • Flighted infeed loaf timer and feeder
  • CE Approval, guards and coded magnetic door switches
  • UL Approval
  • CSA Approval
  • Available in metric construction (where possible)
