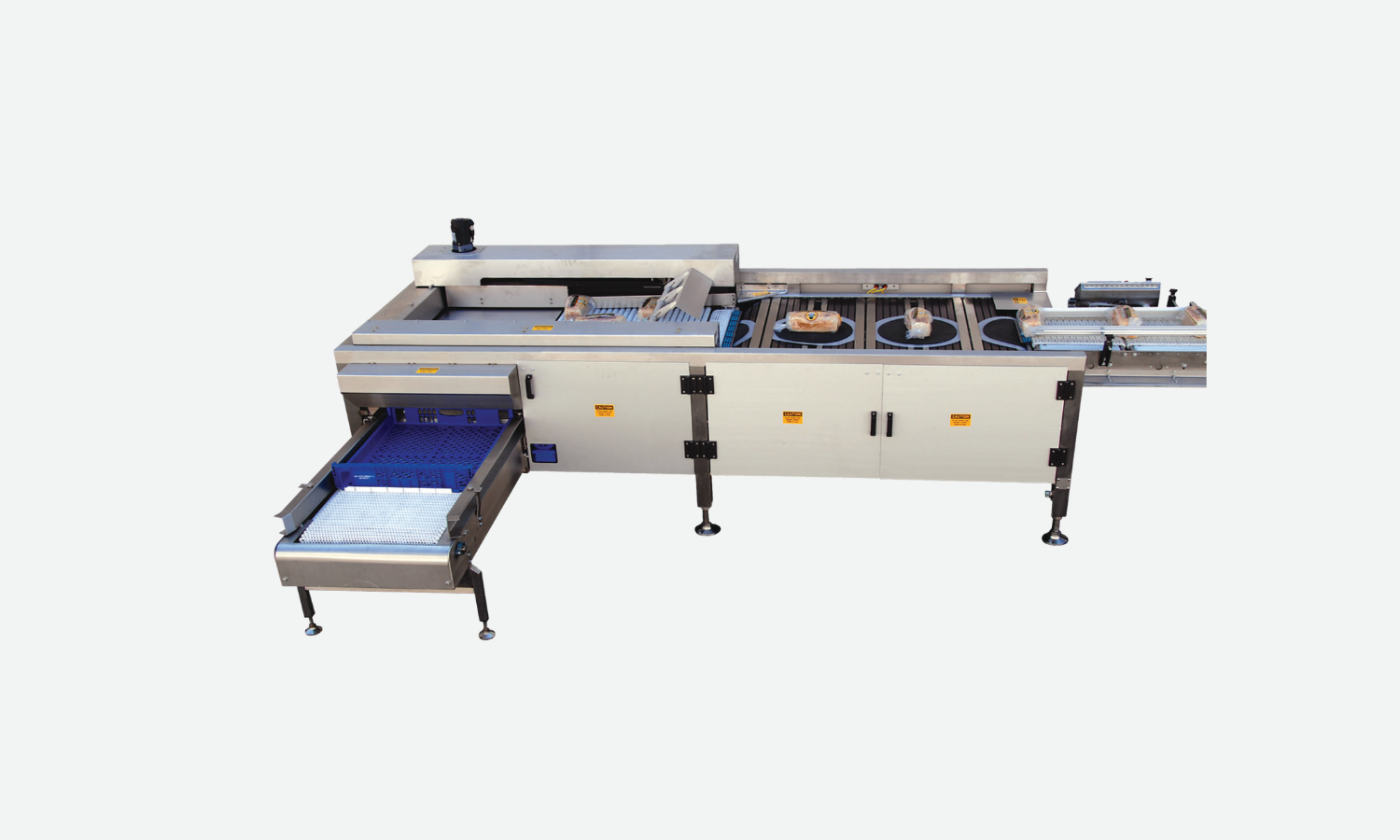

8100 Pattern Former & Tray Loader
The UBE Model 8100 is an automated pattern forming and tray loading system designed for high-speed bakery production. The system automatically arranges products into the selected pattern and loads standard plastic trays at speeds up to 100 loaves per minute. Servo-driven automation and flexible tray handling options allow the 8100 to be configured around a wide range of production line requirements.
Why it is specified
- Automated pattern forming and tray loading
- Automatically adjusts to the selected product pattern
- Designed for standard plastic bakery trays
- Stainless steel frame for demanding production environments
- Allen-Bradley Compact GuardLogix PLC controls
- PanelView Plus 7 touchscreen operator interface
- Kinetix 5500 servo drive technology
- Available with automatic tray stacking and unstacking
- Flexible tray feed and takeaway conveyor configurations
Specifications
| Machine Details | Standard Configuration |
|---|---|
| Electrical | 208/230/480 V, 50 or 60 Hz |
| Air Requirements | 10 CFM @ 80 PSI |
Specifications and production speeds may vary based on product characteristics, tray size, pattern configuration, and application requirements. Contact UBE to confirm performance and configuration for your specific product and tray.
How it works
Automatic Pattern Forming
Products are automatically organized into the selected pattern before tray loading, allowing the system to accommodate different production requirements.
Automated Tray Loading
The 8100 combines pattern forming and tray loading into a single automated system capable of production speeds up to 100 loaves per minute.
Servo-Controlled Automation
Allen-Bradley Compact GuardLogix controls, a PanelView Plus 7 touchscreen, and Kinetix 5500 servo drives provide modern machine control and repeatable operation.
Flexible Tray Handling
Available configurations include bottom-out unstacking, bottom-up stacking, non-standard tray handling, extended infeeds, and tray feed and takeaway conveyors.
Next step
Specify the 8100 Pattern Former & Tray Loader for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
